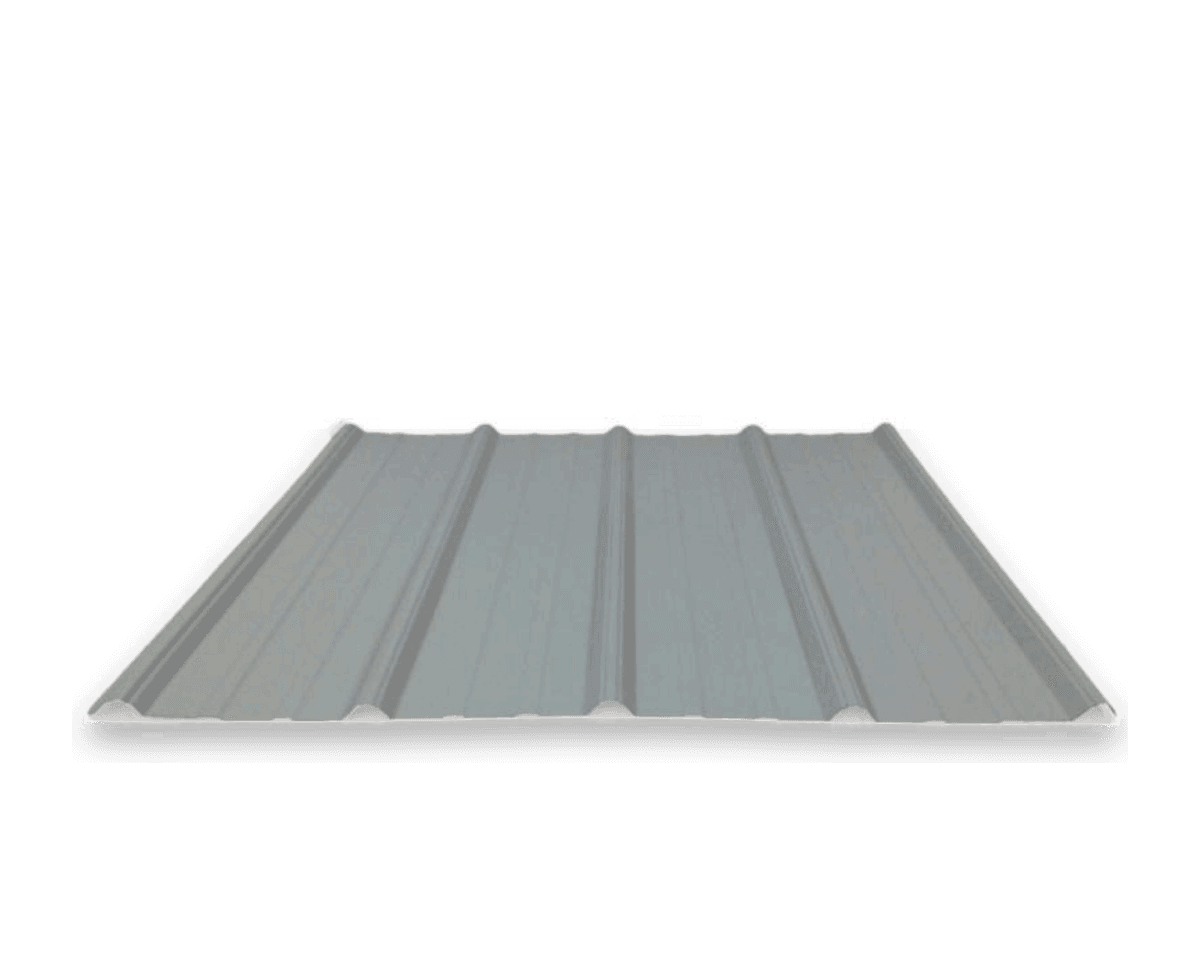

9-36 Panel
The 9-36 profile is designed specifically with the agricultural industry in mind. The 9-36 profile is the most economical roofing and siding panel we carry, making it the perfect choice for shops, barns, and storage buildings.

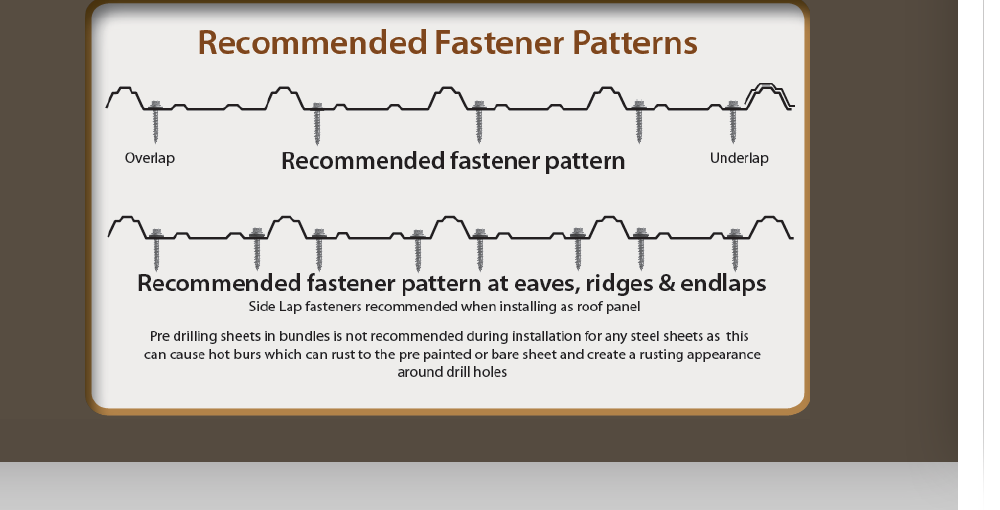

Cross-section & fastening.
Profile, materials, warranty.
- Use
- Roof / Wall / Liner
- Slope
- 3/12 and greater
- Coverage
- 36 in wide
- Length
- 3 ft to 45 ft
- Rib Height
- 3/4 in on 9 in centers
- Fastener System
- Exposed Fastener
- Recommended Substrate
- Open Framing or Solid Substrate
Recommended accessories & fasteners.
The 9-36 profile is designed specifically with the agricultural industry in mind. The 9-36 profile is the most economical roofing and siding panel we carry, making it the perfect choice for shops, barns, and storage buildings.
Colors & Gauges
The 9-36 Panel is available in Valley Steel & Trim's full range of standard roofing and siding colors in 29 and 26 gauge material. Our finishes are built to resist fading, chalking and the elements for years of dependable service.
Recommended Accessories & Fasteners
- Closures: Profile-matched closure strips
- Fasteners: MG #10 × 1.5 in (wood), MG #10 × 2 in (wood), MD #12 (metal), ST #14 × 7/8 in (laps)
- Miscellaneous: Butyl Tape, Roof Boots, X Seal, Metal Roof Sealant, Synthetic Underlayment
See 9-36 Panel in every color.
Try any of our stocked colors on a real building — roof, walls, and trim — then share the link with your contractor.
Every color, one factory finish.
Silicone-modified polyester
