R Panel

R Panel

The R Panel profile is the panel of choice for industrial and commercial metal roofing and siding applications, and is an excellent choice for pre-engineered metal buildings. The R Panel profile provides the strength and durability to withstand the toughest conditions and is ideal for slopes as low as 1/12.

Request a quoteSee it on a building

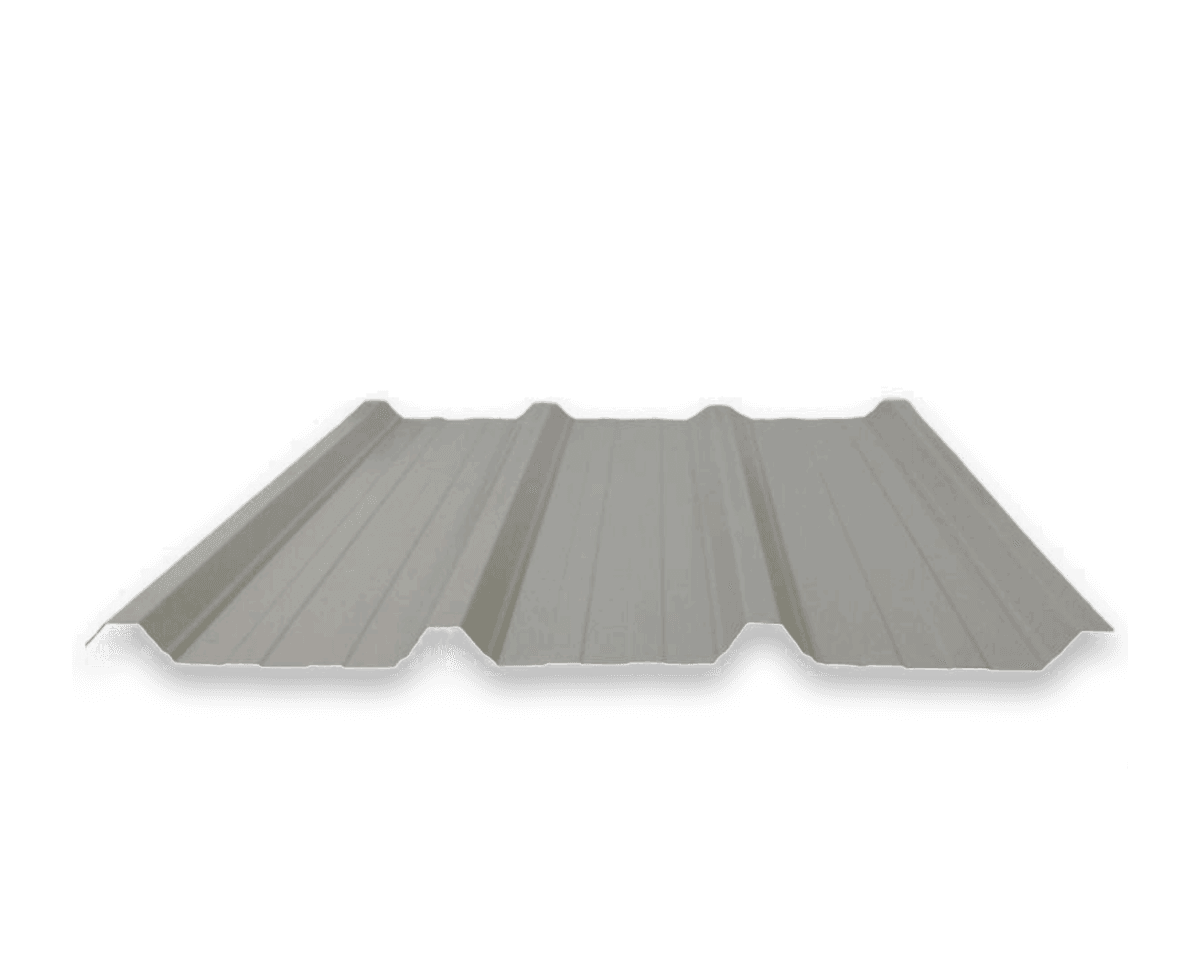

R Panel — Valley Steel & Trim metal panel
UseRoof / Wall
SlopeAs low as 1/12
Coverage36 in wide
Length3 ft to 45 ft
Rib Height1.25 in on 12 in centers
Fastener SystemExposed Fastener
Recommended SubstrateOpen Framing or Solid Substrate
Profile

Cross-section & fastening.

R Panel profile diagram
Profile cross-section

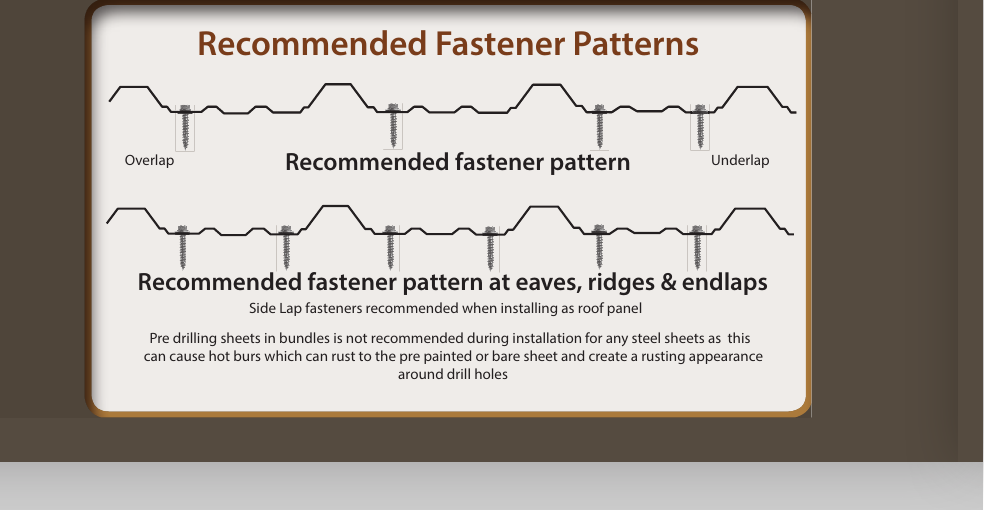

R Panel fastener pattern
Fastener pattern
Specification

Profile, materials, warranty.

Profile
Use
Roof / Wall
Slope
As low as 1/12
Coverage
36 in wide
Length
3 ft to 45 ft
Rib Height
1.25 in on 12 in centers
Fastener System
Exposed Fastener
Recommended Substrate
Open Framing or Solid Substrate
Accessories

Recommended accessories & fasteners.

Download Catalog (PDF)

The R Panel profile is the panel of choice for industrial and commercial metal roofing and siding applications, and is an excellent choice for pre-engineered metal buildings. The R Panel profile provides the strength and durability to withstand the toughest conditions and is ideal for slopes as low as 1/12.

Colors & Gauges

The R Panel is available in Valley Steel & Trim's full range of standard roofing and siding colors in 29 and 26 gauge material. Our finishes are built to resist fading, chalking and the elements for years of dependable service.

Recommended Accessories & Fasteners

  • Closures: LP R Large Tab (Vented), R Panel Large Tab, R Panel Small Tab
  • Fasteners: MG #10 × 1.5 in (wood), MG #10 × 2 in (wood), MD #12 (metal), ST #14 × 7/8 in (laps)
  • Miscellaneous: Butyl Tape, Roof Boots, X Seal, Metal Roof Sealant, Synthetic Underlayment
Color visualizer

See R Panel in every color.

Try any of our stocked colors on a real building — roof, walls, and trim — then share the link with your contractor.

Open the visualizer →
Color system

Every color, one factory finish.

SMP

Silicone-modified polyester

Whites & Neutrals
Artic White
#dfdce8
Polar White
#d3cfd3
Ash Gray
#a7a197
Old Town Gray
#9896a0
Charcoal Gray
#605e5b
Black
#0e1010
Earth Tones
Light Stone
#c8b5a9
Tan
#b0917a
Taupe
#958783
Buckskin
#857665
Brown
#563a31
Burnished Slate
#514541
Reds
Brite Red
#731e2a
Dark Red
#7d1c23
Rural Red
#7d1c23
Burgundy
#482a32
Greens
Green
#1a4339
Blues
Ocean Blue
#3d6072
Gallery Blue
#1c4b68
Metallics & Specialty
Copper Metallic
#a17046
Galvanum
#b5b3ad
