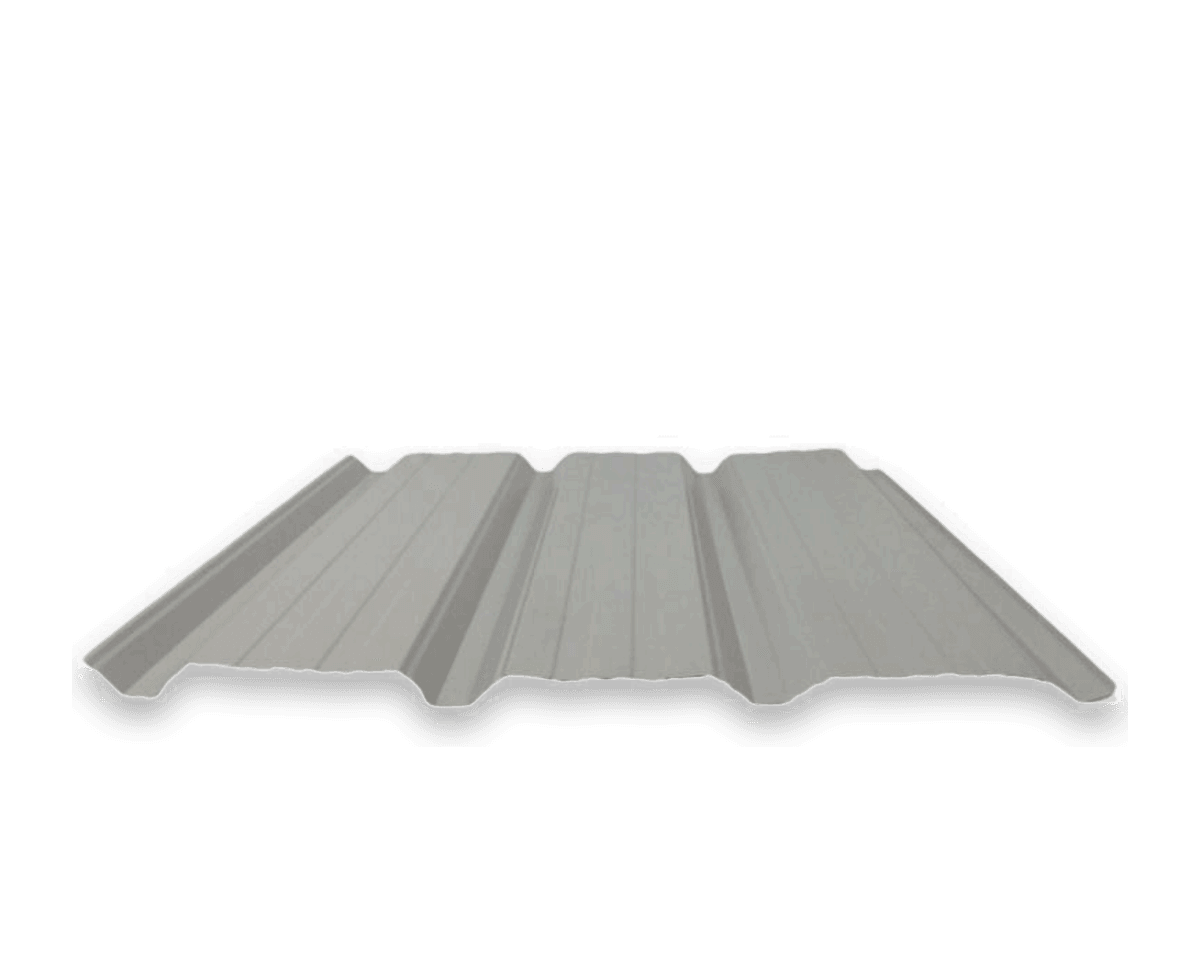

R Panel Reverse
The R Panel Reverse profile is an excellent choice for exterior walls on pre-engineered, insulated metal buildings. The unique profile allows the panel to compress any pre-engineered drape insulation while causing minimal distortion to the panel itself.

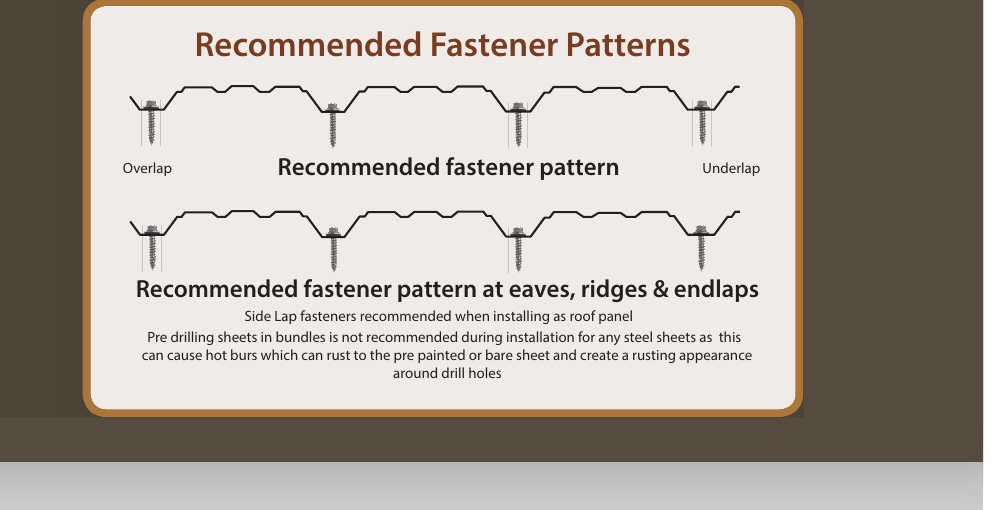

Cross-section & fastening.
Profile, materials, warranty.
- Use
- Wall / Liner
- Coverage
- 36 in wide
- Length
- 3 ft to 45 ft
- Rib Height
- 1.25 in reverse rib on 12 in centers
- Fastener System
- Exposed Fastener
- Recommended Substrate
- Open Spacing or Solid Substrate
Recommended accessories & fasteners.
The R Panel Reverse profile is an excellent choice for exterior walls on pre-engineered, insulated metal buildings. The unique profile allows the panel to compress any pre-engineered drape insulation while causing minimal distortion to the panel itself.
Colors & Gauges
The R Panel Reverse is available in Valley Steel & Trim's full range of standard roofing and siding colors in 29 and 26 gauge material.
Recommended Accessories & Fasteners
- Closures: R Panel Large Tab, R Panel Small Tab
- Fasteners: MG #10 × 1.5 in (wood), MG #10 × 2 in (wood), MD #12 (metal), ST #14 × 7/8 in (laps)
- Miscellaneous: Butyl Tape, Roof Boots, X Seal, Metal Roof Sealant, Synthetic Underlayment
