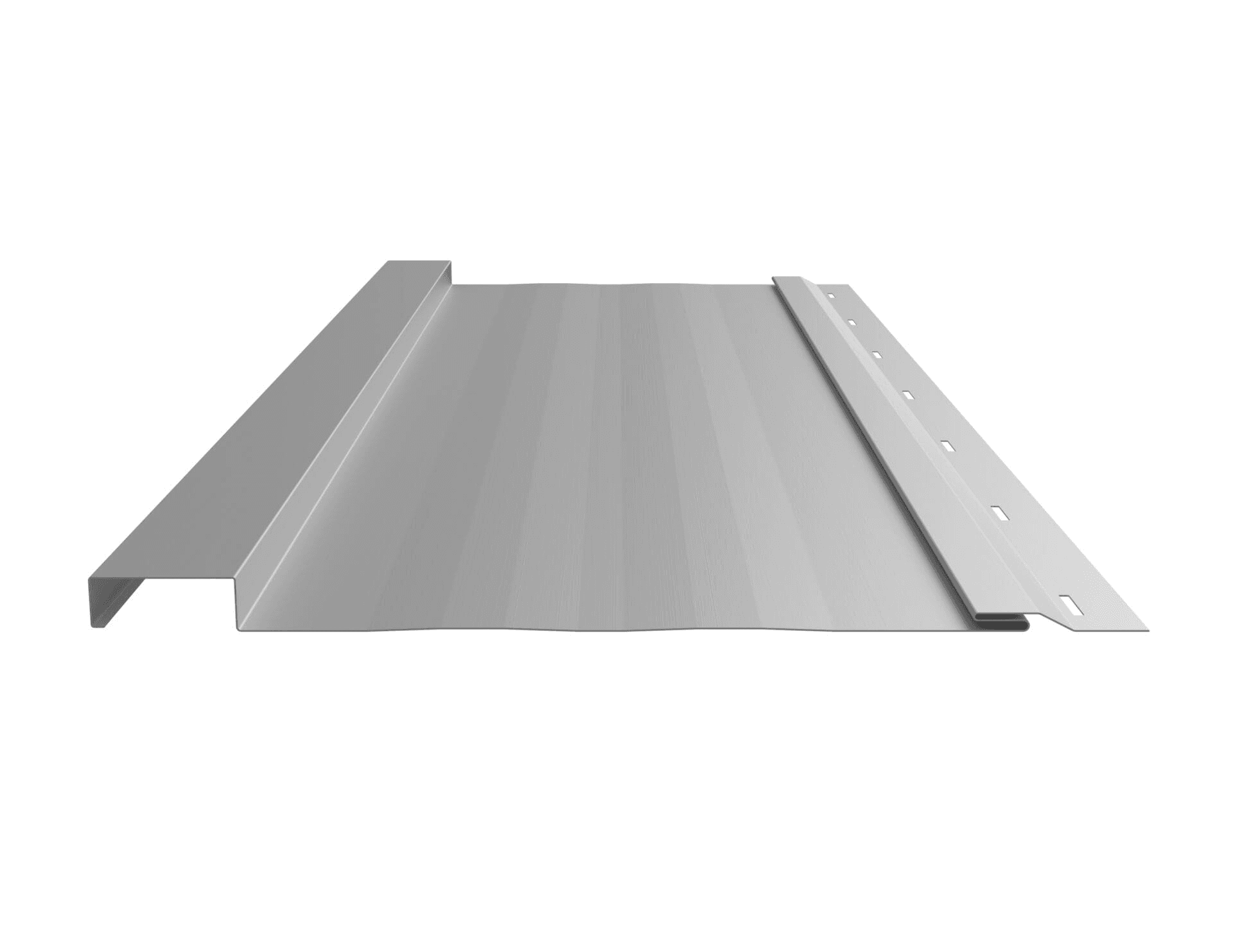

8" Board & Batten
A bold, dimensional board-and-batten profile for sidewalls and accent walls. The raised batten casts a deep shadow line for a modern agricultural and residential look — roll-formed to length in any of our stock colors.
Cross-section & fastening.
Profile, materials, warranty.
- Use
- Wall / Siding
- Coverage Width
- 8 in
- Profile / Rib Height
- 7/16 in
- Module
- 5-15/16 in flat + 2-1/16 in batten
- Fastener System
- Exposed fastener
- Application
- Vertical or horizontal walls
- Recommended Substrate
- Open framing or solid substrate
- Gauge
- 29 GA / 26 GA
- Coating
- SMP — Silicone-modified polyester
- Lengths
- Cut to length
A classic look, built for today
The 8" Board & Batten profile brings the timeless vertical shadow line of traditional board-and-batten siding to steel — delivering that familiar agricultural and farmhouse aesthetic with the durability and low maintenance of metal. The raised batten rib creates a deep, consistent shadow line that adds dimension and visual interest to any wall.
Where it works best
- Barn, shop, and outbuilding sidewalls
- Residential accent walls and gable ends
- Agricultural and commercial building exteriors
- Wainscot applications with a contrasting panel above
Colors & Gauges
Available in Valley Steel & Trim's full range of SMP stock colors in 29 and 26 gauge. Specify 26 gauge for high-traffic or high-exposure walls; 29 gauge covers most standard residential and agricultural applications.
Recommended Accessories & Fasteners
- Corners: Classic Corner Trim or Custom Inside/Outside Corner
- Base: Base Trim or Floating Base Trim
- Top: J-Trim or F-Trim at header transitions
- Fasteners: #10 × 1-1/2 in pancake-head screws (wood framing), color-matched to panel
- Miscellaneous: Butyl tape at laps and penetrations, closure strips at top and bottom
See 8" Board & Batten in every color.
Try any of our stocked colors on a real building — roof, walls, and trim — then share the link with your contractor.
Every color, one factory finish.
Silicone-modified polyester
